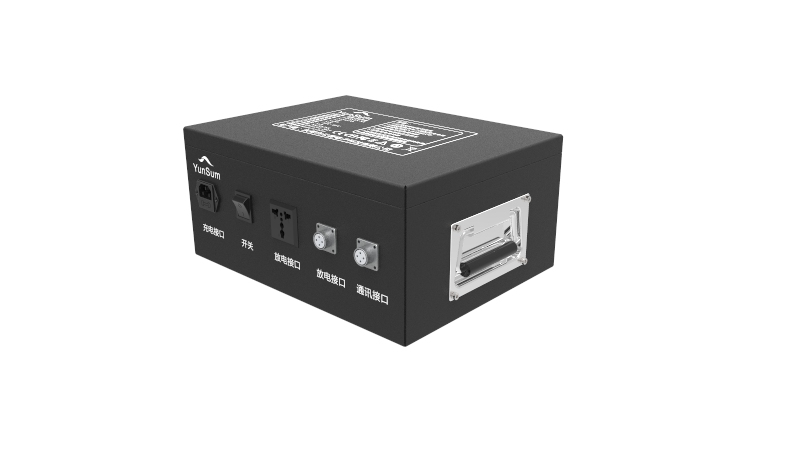

220v2000kw Military-Grade Emergency Standby Power Supply
| Rated Capacity nominal capacity |
80Ah |
Discharge:0.2C discharge cut-off voltage:19.6V
|
| Minimum Capacity minimum capacity |
78Ah |
|
| Energy energy |
2016 Wh |
|
| Nominal Voltage
|
25.2V |
battery End |
| Open Voltage factory voltage |
25.9V to 27.3V |
battery End
|
| output voltage 1 |
220V 50Hz |
1000W max |
| Output voltage 2 | 24V voltage regulator | 300W MAX |
| Load Voltage load voltage |
≥ 19.6V |
|
| Internal Impedance |
≤ 200 mΩ |
AC 1KHz after standard charge after standard charging AC 1KHz test |
| Charge voltage charging voltage |
29.4V |
|
| Standard charge current standard charging current |
15A |
|
| Max charge current maximum charging current |
20A |
|
|
standard discharge current |
20A |
battery End |
| Max discharge current maximum discharge current |
30 A |
battery End |
| Discharge cut-off voltage discharge cut-off voltage |
19.6V |
battery End |
| Operating Temperature operating temperature |
0℃~ +45℃ |
Charge charging |
| -40℃~ +60℃ |
Discharge discharge |
|
| Weight weight |
About 12k g |
|
